Production Kit: $300/Day

The ARRI XT Production Kit includes:

  • ALEXA XT 4:3 Camera Body S/N: 6606
  • ARRI Top Handle
  • 4 Codex 512GB XR drives
  • Codex XR Single Docking Station – Thunderbolt 2 Based
  • Thunderbolt 2 Cable with Thunderbolt 3 Adapter
  • Custom Manufactured Viewfinder bracket
  • Custom Manufactured Top Cheese Plate
  • Custom Manufactured Top 24v/12v Video/Power Breakout Box
  • Custom Manufactured Top power Distribution Box
  • Custom Manufactured EVF Extension Bracket
  • PL-Mount
  • BP Adapter
  • 15MM Top Bridge Plate
  • AB Gold Mount
  • ARRI EVF
  • Short EVF Cable
  • Long EVF Cable
  • 24v Camer Power Cables
  • Custom Flight Case
  • AC Power Supply w/ Cable

Key Features

Sensor Mode Image Size Image Circle
Open Gate (1.55:1) 28.17 x 18.13 33.5mm
4:3 (1.33:1) 23.76 x 17.82 29.7mm
16:9 (1.78:1) 23.76 x 13.37 27.2mm

Sensor Mode Active Photo Sites Max FPS
16:9
ProRes HD 1920 x 1080 120
ProRes 2K 2868 x 1612 60
ProRes 3.2K 3168 x 1778 30
ARRIRAW 120
4:3
4:3 Full 2880 x 2160 90
4:3 Cropped 2578 x 2160 96
Open Gate
ARRIRAW 3414 x 2198 75

Overview

ARRI ALEXA XT CAMERA FEATURES:

  • Record it all: Open Gate sensor mode. Using the full ARRI ALEXA sensor area, Open Gate mode is great for VFX shows, up-sampling to 4K, image repositioning, resizing, rotating or stabilizing. While some use it as their main recording format, others shoot in 16:9 or 4:3 and only certain scenes in Open Gate mode.

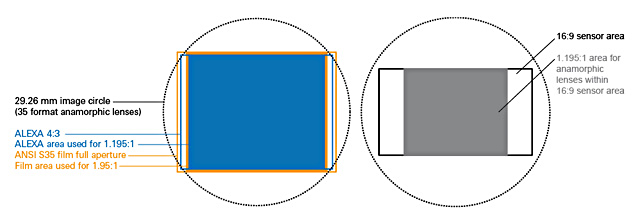

  • True anamorphic with 4:3 sensor mode. Each ARRI ALEXA XT camera is equipped with an Open Gate sensor with the same size and shape as a Super 35mm film frame, which gives filming with anamorphic lenses the most effective use. The 4:3 sensor mode is crucial for delivering a cinematic widescreen look that emulates vintage CinemaScope films, this cinematographic essence has been really appreciated by cinematographers, by image esthetics professionals, and viewers. In ARRI ALEXA XT cameras, the de-squeeze license is included, which is convenient for the viewing of anamorphic images.
  • Powerful and Unique ProRes & DNxHD Options. It is also possible to capture ProRes or DNxHD in-camera as an alternative to ARRI RAW. ARRI ALEXA XT cameras provide two unique ProRes recording features: ProRes 4444 XQ (the highest quality ProRes codec), and ProRes 3.2K: the ideal recording resolution for an up-sample to 4K UHD or for extra room to resize, reframe, rotate or stabilize a 2K or HD image. Additionally, the XR Capture Drives allow ProRes 4444 that can be recorded for a total time of 107 minutes (at 24fps) and can be recorded as fast as 120fps, this offers significantly longer recording times and faster speeds.

Shot On The ARRI Alexa XT
